Low maintain cost Diameter 3000mm Rotary Drilling Rigs Bore Hole For Deep Foundation

Name: Low maintain cost Diameter 3000mm Rotary Drilling Rigs Bore Hole For Deep Foundation
Brand: SINOVO
Price: 1 USD

Wholesale Low maintain cost Diameter 3000mm Rotary Drilling Rigs Bore Hole For Deep Foundation from china suppliers

Brand Name : SINOVO

Model Number : TR460D

Certification : CE/GOST/IS9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiation

Supply Ability : 30 set per month

Delivery Time : 7-10 work days

Packaging Details : Exporting Standard

Name : 3000mm Diameter Bore Hole Rotary Drilling Rig TR460D For Deep Foundation

Type : Rotary Drilling Rig

Model : TR460D

Engine model : CAT

Drilling depth : 110m

Drilling diameter : 3000mm

Engine rated power : 367kW

Max. output torque : 450kN´m

Interlocking Kelly bar : ɸ580*4*20.3m

Friction Kelly bar (optional) : ɸ580*6*20.3m

Contact Now

TR460D Rotary Drilling Rig Diameter 3000mm Bore Hole For Deep Foundation

TR460D rotary drilling rig is large pile machine. Currently, the large tonnage rotary drilling rig is widely used by the customers in the complex geologyarea. What's more, the large and deep hole piles are required in the across sea and across river bridge. Thus, according to the above two reasons, we researched and developed TR460D rotary drilling rig which has the advantages of high stability, large and deep pile and easy for transportation.

TR460D Main Technical Specification:

TR460D Rotary drilling rig
Engine	Model		CAT
	Rated power	kw	367
	Rated speed	r/min	2200
Rotary head	Max.output torque	kN´m	450
Rotary head	Drilling speed	r/min	6-21
Max. drilling diameter		mm	3000
Max. drilling depth		m	110
Crowd cylinder system	Max. crowd force	Kn	440
	Max. extraction force	Kn	440
	Max. stroke	mm	12000
Main winch	Max. pull force	Kn	400
	Max. pull speed	m/min	55
	Wire rope diameter	mm	40
Auxiliary winch	Max. pull force	Kn	120
	Max. pull speed	m/min	65
	Wire rope diameter	mm	20
Mast inclination Side/ forwards/ backwards		°	±6/10/90
Interlocking Kelly bar			ɸ580420.3m
Friction Kelly bar (optional)			ɸ580620.3m
	Traction	Kn	896
	Tracks width	mm	1000
	Caterpillar grounding Length	mm	6860
Working Pressure of Hydraulic System		Mpa	35
Total weight with kelly bar		kg	138000
Dimension	Working (Lx Wx H)	mm	9490x5500x28627
Dimension	Transportation (Lx Wx H)	mm	17250x3900x3500

Feature and advantages of TR460D rotary drilling rig:

Triangle support structure reduces turning radius and increases the stability of rotary drilling rig.
Rear-mounted main winch uses double motors, double reducers and single layer drum design which avoids rope winding.
Crowd winch system is adopted, stroke is 9m. Both crowd force & stroke are larger than those of cylinder system, which is easy to embed casing.
Optimized hydraulic and electrical control system improves system control accurancy and reaction speed.
Authorized utility model patent of depth measuring device improves the accuracy of depth measurement.
Unique design of one machine with double working conditions can meet the requirements of large piles and rock-entry.

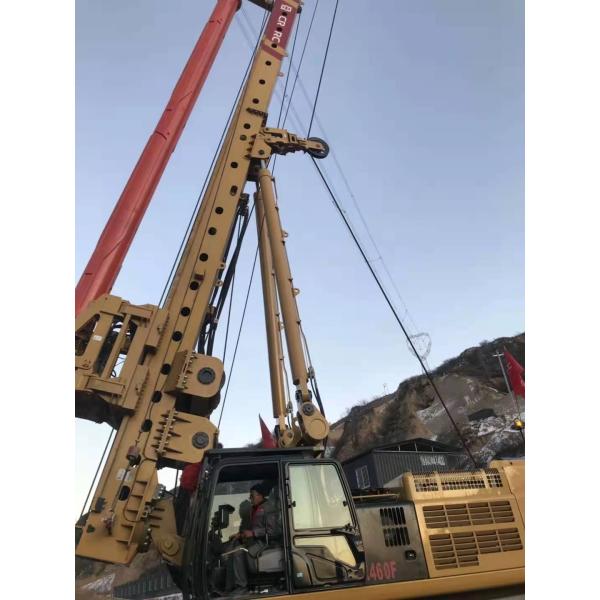

Detailed Images:

Low maintain cost Diameter 3000mm Rotary Drilling Rigs Bore Hole For Deep Foundation

Low maintain cost Diameter 3000mm Rotary Drilling Rigs Bore Hole For Deep Foundation
